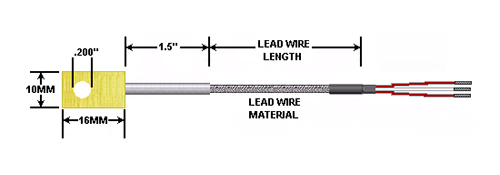

Brass Bracket RTDs
(Series RC3)

RC3 RTD Catalog Page

Ordering Information

Configure this style to request a quote or call for assistance

Part No.:

select options

Start Here

1
Series
2
Element
Type
3
Element Accuracy
4
Wire Configuration
5
Bracket Type
6
Lead Wire Material
7
Lead Wire Length
8
Termination Style
9
Special Features
RC3

2 Element Type
T 100 Ω DIN 00385 (thin film)
U 500 Ω DIN 00385 (thin film)
W 1000 Ω DIN 00385 (thin film)
X 120 Ω Nickel DIN 00672 (thin film)
Y 100 Ω DIN 003916 (wire wound)
Z 500 Ω DIN 003916 (wire wound)
Q 10 Ω copper (thin film)
S 100 Ω DIN 00385 (wire wound)

3 Element Accuracy
A Class A (0.06%)
B Class B (0.12%)

4 Wire Configuration
2 2-wire
3 3-wire
4 4-wire
5 2-wire (Dual)
6 3-wire (Dual)

5 Bracket Type
X Straight brass mounting bracket (10MM wide x 16MM long)
Y Straight brass mounting bracket (0.75” x 1.25” long)
Z 90 degree brass mounting bracket (10MM wide x 16MM long)

6 Lead Wire Material
A Fiberglass (800°F)
B Fluoropolymer (400°F)
C Fiberglass with stainless steel braid (800°F)
D Fluoropolymer with stainless steel braid (400°F)
E Fiberglass with armor cable (800°F)
F Fluoropolymer with armor cable (400°F)

7 Lead Wire Length
6-999
  Over 999" contact factory

8 Termination Style
A 2" stripped leads (bare ends)
B 2" stripped w/ #8 spade lugs
C Standard male 2-pin plug (400°F)
D Standard male 3-pin plug (400°F)
F Standard 2-pin female jack (400°F)
G Standard 3-pin female jack (400°F)
H Miniature male 2-pin plug (400°F)
P Miniature male 3-pin plug (400°F)
J Miniature female 2-pin jack (400°F)
K Miniature female 3-pin jack (400°F)
R Dual molded male 4-pin plug (400°F) (for dual 2 wire)
T Dual molded female 4-hole jack (400°F) (for dual 2 wire)
W 2" stripped leads w/ pin terminals
Q 2" stripped leads w/ wire ferrules

X

Extra long lead wire length (beyond 2” stripped leads)

9 Special Features
  None
02 1.5" long strain relief spring
03 1.5" long heat shrink where wire exits the probe
06 Epoxy seal
07 Cable Clamp
08 Bx Connector
09 Mating connector
